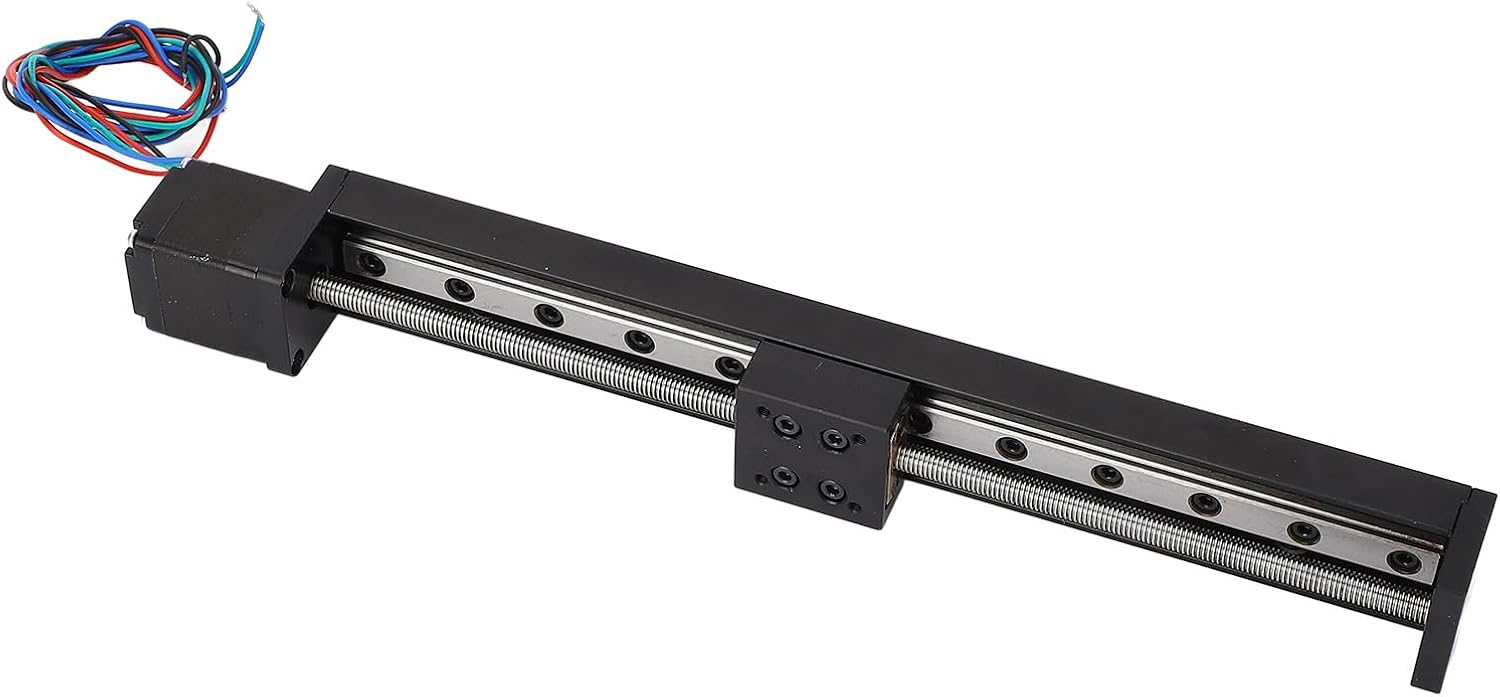

Brilluxa Linear Actuator, 200mm Stroke Linear Rail Slide with T6x1 Lead Screw and 28 Stepper Motor, CNC Motion Stage Guide for Automation Equipment

Item Type: Linear Rail Guide Slide ActuatorMaterial: Aluminum AlloyEffective Stroke: 200mm (The distance that the slider can move on the slide is 200MM)Screw Specification: T6x1Screw: T6Pitch: 1 (Rotate the motor once, the distance the slider moves on the screw is 1mm)Screw Accuracy: ±0.01mmLoad: Horizontal 5KG; Vertical 1KGPositioning Accuracy: ±0.1mmHolding Torsion: 6N.cmCurrent: 0.6A: 5.5ΩInductance: 3.2MHSpeed: 0-120mm/sStep Angle: 1.8 degreePackage List：1 x Linear Rail Guide Slide Actuator

• [Specification] This linear stage actuator features 200mm stroke, 1.8 degree step angle, 6mm diameter screw, and 1mm pitch, providing smoothly and accurate linear motion control for a variety of applications.
• [Single Rail Design] The linear stage motion actuator utilizes a single rail design, ensuring stable operation and minimal noise levels, making it suitable for X, Y, and Z axes movements.
• [Versatile Application] Widely used in DIY CNC milling, testing equipment, optical laboratory measurement, fine adjustment, production machinery, mechanical equipment positioning, and motion control.
• [High Performance] With the ability to handle horizontal and vertical loads, high positioning accuracy, efficiency, and excellent stability, meeting the demands of accurate applications.
• [Metal Construction] Constructed from aluminum alloy, the linear motion stage actuator is sturdy and stable, with reinforced bottom plate for enhanced stability during operation.
